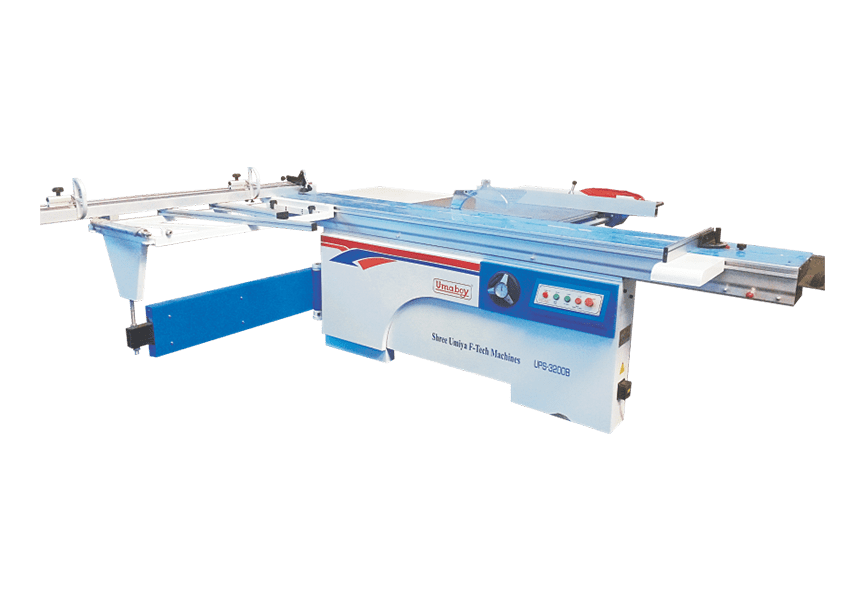

Panel Saw UPS 3200B


MODEL UBS 3200B
Dimension of sliding table 3200 x 375 mm
Gross cut capacity 3200 mm
Width of cut between saw blade and rip fence 1220 mm
Saw blade diameter 300 m (250-300)
Height of cut 75 mm
Speed of main saw spindle 4000/6000 rpm
Spindle diameter 30 mm
Tilting saw blade 0-45°
Main motor 4kw
Scoring saw blade diameter 120 mm
Speed of scoring saw blade 8000r/min
Scoring spindle diameter 20 mm
Scoring motor 0.75kw
Overall dimensions 3250 x 3250 x 900 mm
Rip fence movement Manual
45° Tilt Manual
Cross Cut Fence Read Out -
PLC Touch Screen -
Cutter Up Down Movement Manual

Note : Technical specifications may be changed without any prior notice. Product images are just for the reference.
