This Machine is suitable to cut solid wood, plywood MDF board, particle board & various kind of laminated board.
Compact and rigid structure with high precision performance.

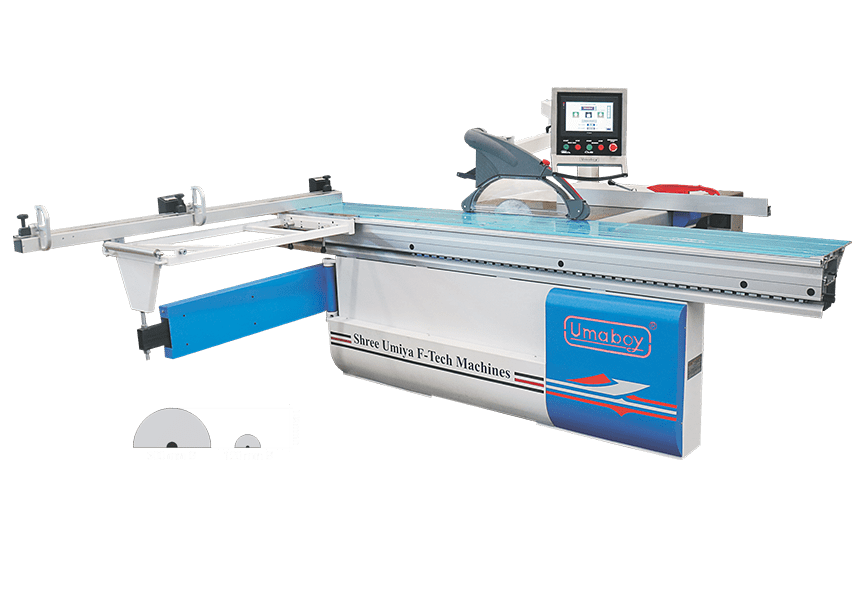

Panel Saw UPS 3200 A++


MODEL UBS 3200A++
Dimension of sliding table 3200 x 375 mm
Gross cut capacity 3200 mm
Width of cut between saw blade and rip fence 1220 mm
Saw blade diameter 300 m (250-300)
Height of cut 75 mm
Speed of main saw spindle 4000/6000 rpm
Spindle diameter 30 mm
Tilting saw blade 0-45°
Main motor 5.5kw
Scoring saw blade diameter 120 mm
Speed of scoring saw blade 8000r/min
Scoring spindle diameter 20 mm
Scoring motor 0.75kw
Overall dimensions 3250 x 3250 x 900 mm
Rip fence movement Auto
45° Tilt Auto
Cross Cut Fence Read Out Digital
PLC Touch Screen Yes
Cutter Up Down Movement Auto

Note : Technical specifications may be changed without any prior notice. Product images are just for the reference.
