Three Line Multi-Boring Machine

MODEL UMB 21
Distance between the bit 3280 mm
Horizontal head 1
Vertical head 2
Tilting Head 1
The quantity of spindle 63
Maximum boring diameter 35mm
Maximum panel thickness 60mm
Maximum panel width 1800mm
Minimum panel width -
Total power 4.5kw

Salient Features


  • The machine tool components choose the superior steel materials,they go through the highly and strong heat treatment.
  • The moving parts choose the high Grade anti-wear materials.
  • They are firm and durable.
  • Multi-drill has been elaborately made. It has multiple purposes with high speed and fine accuracy.

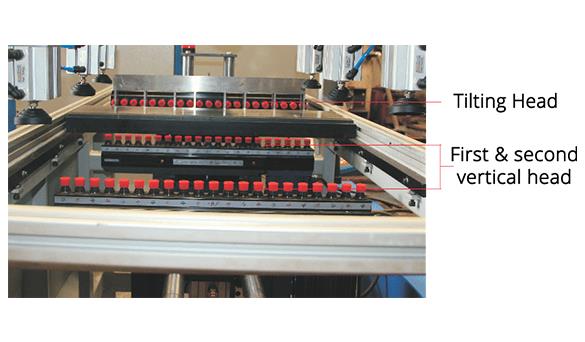

  • Equipped with one tilting head and two vertical head.
  • 21 drilling bit in each head.
  • Mainly used for drilling in long board at one time.
