Maximum Production Output With
Excellent
Cutting Of Multiple Panels

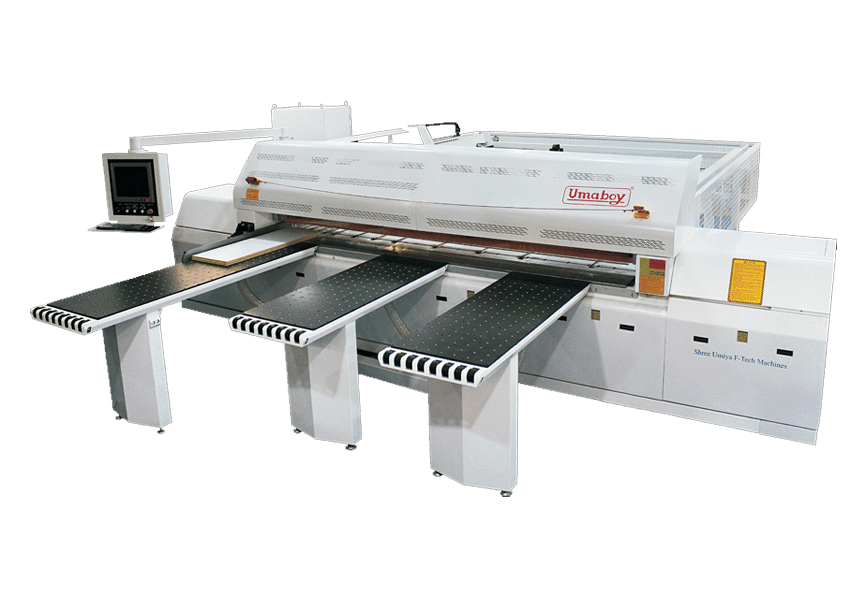

Computer Controlled Beam Saw Machine


MODEL UBS 3200 AUTO
Saw cutting length 3280 mm
Saw cutting thickness 90mm
Diameter of main saw blade Θ 400mm
Diameter of main saw blade shaft Θ 60mm
Revolving speed of main saw blade 3930 r/min
Diameter of scoring saw blade Θ 180mm
Revolving speed of scoring saw blade 6500r/min
Advance speed of saw base (stepless) 9-50 m/min
Back speed of saw base 100 m/min
Drive motor of saw base 1 kw
Drive motor of main saw blade 15 kw
Automatic feeding motor 1.5 kw
Automatic feeding speed 50m/min
Operating pressure 5 ~ 8 kg/cm
Net weight of device 62420 kg
External dimensions (l. x W x H) 5830 x 6630 x 1810 mm

Note : Technical specifications may be changed without any prior notice. Product images are just for the reference.
